PRODUCT DETAILS
| Description: |
ESU Pre-Tension Retaining Clip 45mm |
| Code: |
RB12-4512-503045 |
| Pack Size: |
50 l 500 EA |
| Color/Finish: |
Orange (503) |
| Image: |
 |
| Use With: |
45mm Spring Control
(RB12-3200-xxx045) and
Compact Booster
(RB12-4505-xxx045) |
Available:
|
October 2022 |
PRODUCTION/INSTALLATION FEATURES:

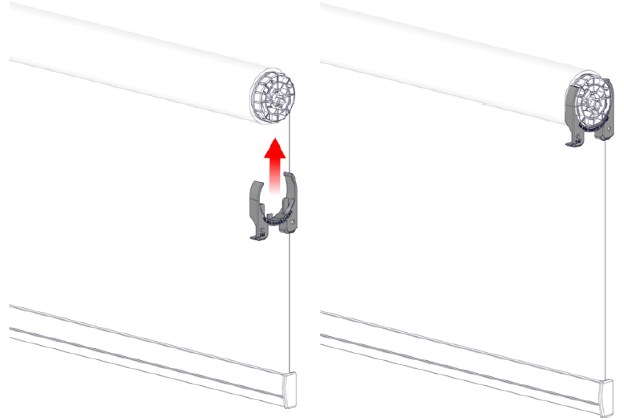

• Slides onto the spring control AFTER pre-tensioning
• Aligns with slots in the spring control
• Wraps around the outside of the spring control to hold it in place
• Part is compatible with 45mm ESU spring controls
FUNCTIONAL FEATURES
• Retains spring pre-tension for Easy Spring Ultra during transportation and installation
• Sustains shock/vibration during transit without coming loose
• Easily installed onto the ESU products during manufacturing
• Held securely in place until the product is installed and ready to use
• Easily removed by installer or end user without the use of a tool
• Orange color to help ensure product is noticed and removed prior to operation
• Shade is not operable until the pre-tensioning clip is removed
• Clip can be reused after removal
• Clip has verbiage (This Side Toward Bracket) to assist in proper orientation
• 45mm Spring Control - compatible in open roll, CF90, P95, Square Cassette 110, and Fascia configurations
• Compact Booster – compatible in open roll and CF90 configurations
