| | DISCONTINUED PRODUCT | REPLACEMENT PRODUCT | REPLACEMENT PRODUCT |

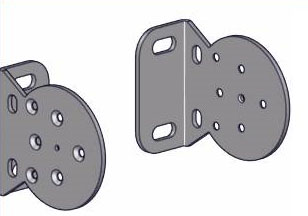

DESCRIPTION: | Open Blind Brackets ‐ Steel | Open Blind External Brackets | Open Blind External Brackets- Square |
CODE:
| RE01‐3001‐012067 – Stainless RE01‐3002‐xxx067 – Powder | RE01‐3020‐xxx000 – Powder coat
RE01‐3021‐012000 – Stainless | RE01-3030-xxx000 – Powder Coat
RE01-3031-012000 – Stainless |
PACK SIZE: | 2 | 20 Sets | 2 | 20 Sets | 1 | 16 Pairs |
IMAGE: |  |  |  |
| USE WITH: | Zipscreen & VEUE Suite
| VEUE Suite | Zipscreen & VEUE Suite |
| Transitioning | Available Now | | |
Changes/Improvements - Open Blind External Brackets
- Compatible with all wire guide terminals for all bracket orientations. (Including top fix with Zamak motor Adaptor)
- No spacer adaptor required for Spring controlled wire guide. (Subtract 8mm from existing tube deduction)
- Not compatible with zipscreen open bracket template.
- No covers available.
- Monument (057) stocked as standard offering.
DISCONTINUED PRODUCT | REPLACEMENT PRODUCT |
DESCRIPTION: | AUTOMATE | DCRF Q2.0 | AUTOMATE | DCRF Q2.0 |
CODE: | MTDCBRFQ28-2 MTDCBRFQ28-2CT | MTDCBRFQ28-2 MTDCBRFQ28-2CT |
PACK SIZE: | 1|15 Piece | 1|15 Piece |
LENGTH: | 25.6 in. (650mm) | 25.6 in. (650mm) |
BATTERY CAPACITY: | 2600mAH | 2600mAH |
IMAGE: |
Bigger Button Hole |
Smaller Button Hole |
USE WITH: | R-Series Adapter Plates MTAD-252835-RS | Skyline Adapter Plates MTAD-252835-SL MTAD-25-28-SLV2W | Acmeda Adapter Plate RB09-0352-xxx040 (for S45 System) |
TRANSITIONING: | All motors with production date codes 05/27/2018 and later |
Production Improvements
- Made Motor Head Hole smaller to prevent button getting stuck
- Improved head robustness to reduce breakage at collar and near fastening pins
Functional Improvements
- Wall thickness of motor head was increased to reduce breakage
View and download via links below:
DISCONTINUED PRODUCT | REPLACEMENT PRODUCT |
DESCRIPTION: | AUTOMATE | DCRF Q2.0 | AUTOMATE | DCRF Q2.0 |
CODE: | MTDCBRFQ28-2 MTDCBRFQ28-2CT | MTDCBRFQ28-2 MTDCBRFQ28-2CT |
PACK SIZE: | 1|15 Piece | 1|15 Piece |
LENGTH: | 25.6 in. (650mm) | 25.6 in. (650mm) |
BATTERY CAPACITY: | 2600mAH | 2600mAH |
IMAGE: |
Bigger Button Hole |
Smaller Button Hole |
USE WITH: | R-Series Adapter Plates MTAD-252835-RS | Skyline Adapter Plates MTAD-252835-SL MTAD-25-28-SLV2W | Acmeda Adapter Plate RB09-0352-xxx040 (for S45 System) |
TRANSITIONING: | All motors with production date codes 05/27/2018 and later |
Production Improvements
- Made Motor Head Hole smaller to prevent button getting stuck
- Improved head robustness to reduce breakage at collar and near fastening pins
Functional Improvements
- Wall thickness of motor head was increased to reduce breakage
View and download via links below:
DISCONTINUED PRODUCT | REPLACEMENT PRODUCT |
DESCRIPTION: | AUTOMATE | DCRF Q2.0 | AUTOMATE | DCRF Q2.0 |
CODE: | MTDCBRFQ28-2 MTDCBRFQ28-2CT | MTDCBRFQ28-2 MTDCBRFQ28-2CT |
PACK SIZE: | 1|15 Piece | 1|15 Piece |
LENGTH: | 25.6 in. (650mm) | 25.6 in. (650mm) |
BATTERY CAPACITY: | 2600mAH | 2600mAH |
IMAGE: |
Bigger Button Hole |
Smaller Button Hole |
USE WITH: | R-Series Adapter Plates MTAD-252835-RS | Skyline Adapter Plates MTAD-252835-SL MTAD-25-28-SLV2W | Acmeda Adapter Plate RB09-0352-xxx040 (for S45 System) |
TRANSITIONING: | All motors with production date codes 05/27/2018 and later |
Production Improvements
- Made Motor Head Hole smaller to prevent button getting stuck
- Improved head robustness to reduce breakage at collar and near fastening pins
Functional Improvements
- Wall thickness of motor head was increased to reduce breakage
View and download via links below:
DISCONTINUED PRODUCT | REPLACEMENT PRODUCT |
DESCRIPTION: | AUTOMATE | DCRF Q2.0 | AUTOMATE | DCRF Q2.0 |
CODE: | MTDCBRFQ28-2 MTDCBRFQ28-2CT | MTDCBRFQ28-2 MTDCBRFQ28-2CT |
PACK SIZE: | 1|15 Piece | 1|15 Piece |
LENGTH: | 25.6 in. (650mm) | 25.6 in. (650mm) |
BATTERY CAPACITY: | 2600mAH | 2600mAH |
IMAGE: |
Bigger Button Hole |
Smaller Button Hole |
USE WITH: | R-Series Adapter Plates MTAD-252835-RS | Skyline Adapter Plates MTAD-252835-SL MTAD-25-28-SLV2W | Acmeda Adapter Plate RB09-0352-xxx040 (for S45 System) |
TRANSITIONING: | All motors with production date codes 05/27/2018 and later |
Production Improvements
- Made Motor Head Hole smaller to prevent button getting stuck
- Improved head robustness to reduce breakage at collar and near fastening pins
Functional Improvements
- Wall thickness of motor head was increased to reduce breakage
View and download via links below:
DISCONTINUED PRODUCT | REPLACEMENT PRODUCT |
DESCRIPTION: | AUTOMATE | DCRF Q2.0 | AUTOMATE | DCRF Q2.0 |
CODE: | MTDCBRFQ28-2 MTDCBRFQ28-2CT | MTDCBRFQ28-2 MTDCBRFQ28-2CT |
PACK SIZE: | 1|15 Piece | 1|15 Piece |
LENGTH: | 25.6 in. (650mm) | 25.6 in. (650mm) |
BATTERY CAPACITY: | 2600mAH | 2600mAH |
IMAGE: |
Bigger Button Hole |
Smaller Button Hole |
USE WITH: | R-Series Adapter Plates MTAD-252835-RS | Skyline Adapter Plates MTAD-252835-SL MTAD-25-28-SLV2W | Acmeda Adapter Plate RB09-0352-xxx040 (for S45 System) |
TRANSITIONING: | All motors with production date codes 05/27/2018 and later |
Production Improvements
- Made Motor Head Hole smaller to prevent button getting stuck
- Improved head robustness to reduce breakage at collar and near fastening pins
Functional Improvements
- Wall thickness of motor head was increased to reduce breakage
View and download via links below:
Updated Veue Suite Documents- Assembly, Installation & Product Specification Manuals
- Width deductions for tube & fabric have been simplified across VEUE suite due to removal of end caps. (Refer Assembly Manual)
- Graphics of open brackets updated.
Updated Zipscreen Documents - Assembly, Installation & Product Specification Manuals
- Bill of materials & deductions updated. (Zipscreen Assembly Manual, Page 10)
- Revised Tube Deductions
- Side Channel height deductions for open bracket installation
- Graphics of open brackets updated.

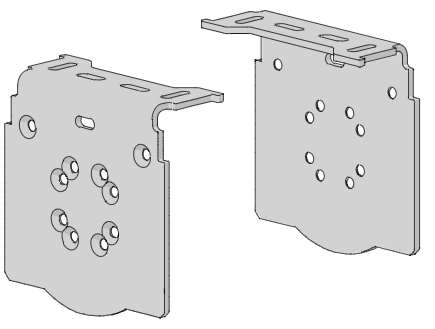

View and download via links below:Changes/Improvements - Open Blind External Brackets - SQUARE
- Provides alignment features for Zipscreen Side Channels in all orientations.
- Zipscreen Open Bracket Template no longer required.
- Zipscreen Side Channel deduction is the same as the Box 120 End Plates, for both Face Fix & Top Fix installations.
- Compatible with VEUE Wire Guide Terminals.
View and download via links below:
