New Product | Medium HD Bracket Adaptor

	PRODUCT DETAILS

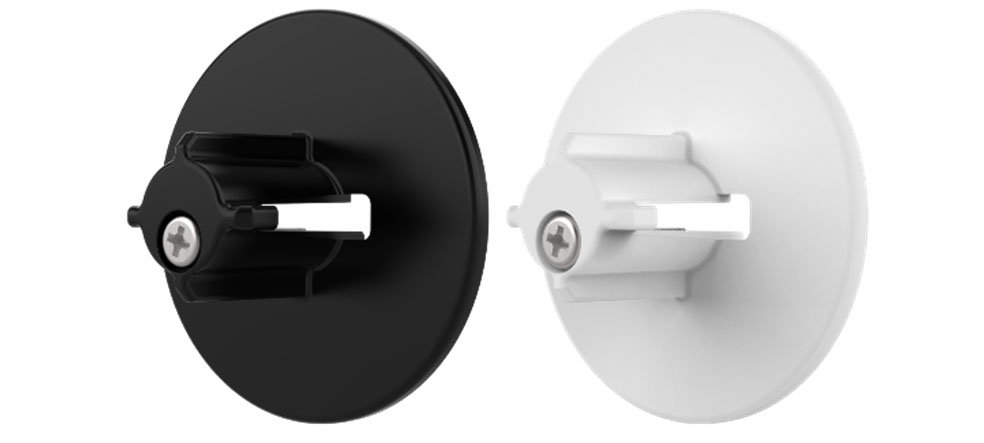

Description:	Medium HD Bracket Adaptor + Screw
Code:	RB09‐0701‐050012 (Black) | RB09‐0701‐069012 (White)
Pack Size:	25 | 200 Pcs
Price:	Refer to relevant leaflet
Color/Finish:	Black, Pure white
Image:

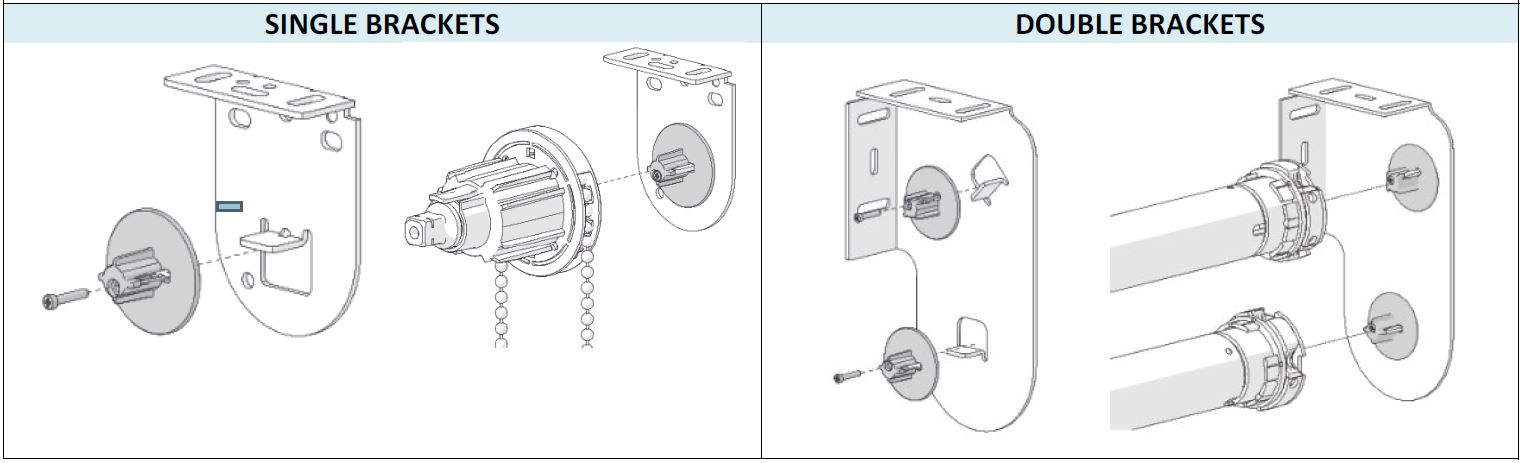

Use With:	Single & Double Brackets with 12mm tongue, RB07/08/09 Chain Winders, 3Nm & 6Nm motors

 Features & Benefits:

• Motors are now compatible with all RB Double Bracket solutions
  o Requires the motors to use the latest disc adaptors (refer associated PCL’s)
• Robust solution for chain winders in commercial applications
  o Designed to protect the 12mm bracket tongue against excessive chain operation force
• Can be retrofit to existing installations
  o Remove roller tube, install HD Bracket adaptor, re‐install roller tube
  o Requires additional 1.5mm idler clearance
• Must allow for additional 1.5mm deduction during fabrication
• Screw requires #1 Phillips head

• New Product Leaflet (with pricing)
• New Product Leaflet (withOUT pricing)
